manufacturer ip67 self-locking mechanical ring indicator 6 pin metal push button switch

FOB Reference Price:Get Latest Price
US $4-6 / Pieces | 500 Piece/Pieces of mechanical ring indicator 6 pin metal push button switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
shangkai(SK)
Model Number:
YXGQ22B-10J of ring indicator 6 pin metal push button switch
Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250V
Name:
mechanical ring indicator 6 pin metal push button switch
The Front Shape:
Domed
Terminal Type:
X Two Terminal breakpoints slow moving contact
Switch Specifications:
2A/36VDC
Contact Resistance:
≤50MΩ 6 pin push button switch
Insulation Resistance:
≥1000MΩ
Dielectric Strength:
2000VAC mini waterproof push button switch
Mechanical Life:
>1,000,000 times
Electrical Life:
>200,000 times
Operating Temperature:
-20℃~+55℃
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week of mechanical ring indicator 6 pin metal push button switch
Packaging & Delivery
Packaging Details
manufacturer ip67 self-locking mechanical ring indicator 6 pin metal push button switch of
50Pieces in one box,1000pieces in one Standard export carton ,6 pin push button switch
Port
shanghai
Lead Time :
20 working days after receive the payments

manufacturer ip67 self-locking mechanical ring indicator 6 pin metal push button switch

Product Description
We are a manufacturer specializing in the production of various kinds of button switches. Please click here to leave a message for me to get more information..JPEG

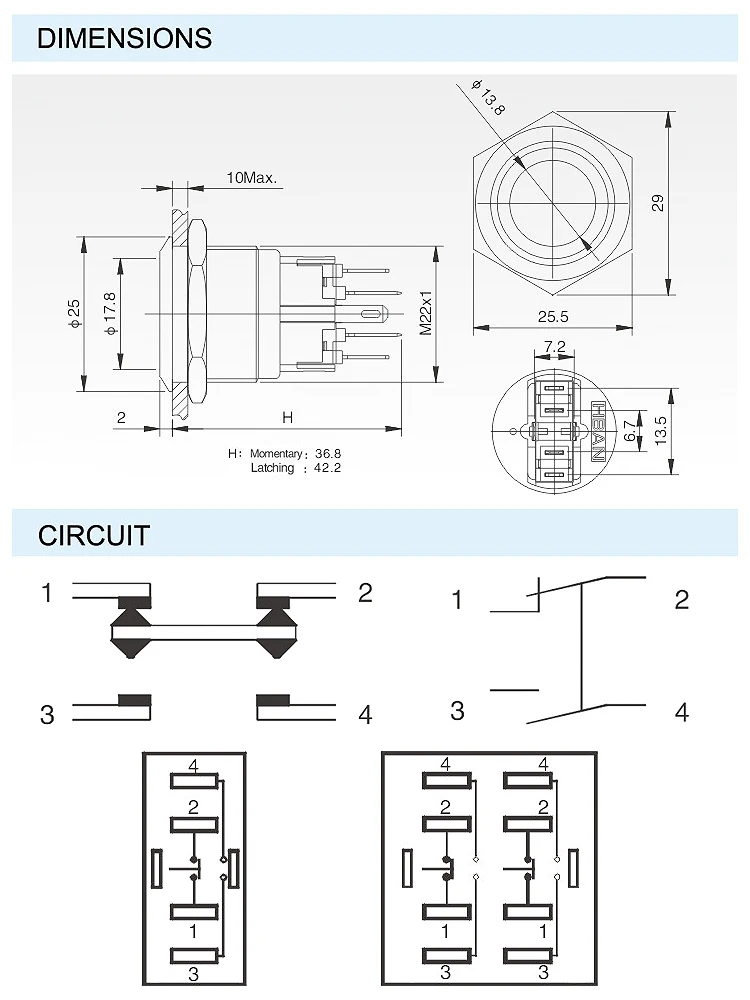

 manufacturer ip67 self-locking mechanical mini waterproof 6 pin metal push button switch



Panel Thickness  1-10mm
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ manufacture push button switch
Torque 5-14Nm
Operating Pressure About 4N
Operating Stroke About 1.8mm
Mounting Hole Size 22mm mini waterproof push button switch
Dielectric Strength 2000VAC mechanical push button switch
Electronic Life >1,000,000 times
Mechanical Life >200,000 times
Operating temperature -20°c~+55°c
IP code IP67 IK09
Switch Rating  2A /36VAC
Contact Configuration 1NO
Operating  Type Momentary
The Front Shape High Round
The Crust Material Stainless Stell,Nickel-plated Brass or Gold-Plated Brass



Material



 Contact :  Sliver Alloy
 Button:    Tainless Steel;Mirror Surface,CD pattern
 Case:      Tainless Steel;Mirror Surface,CD pattern Nickel-plated Brass
 Base:       PBT

 (Can be made to order)
